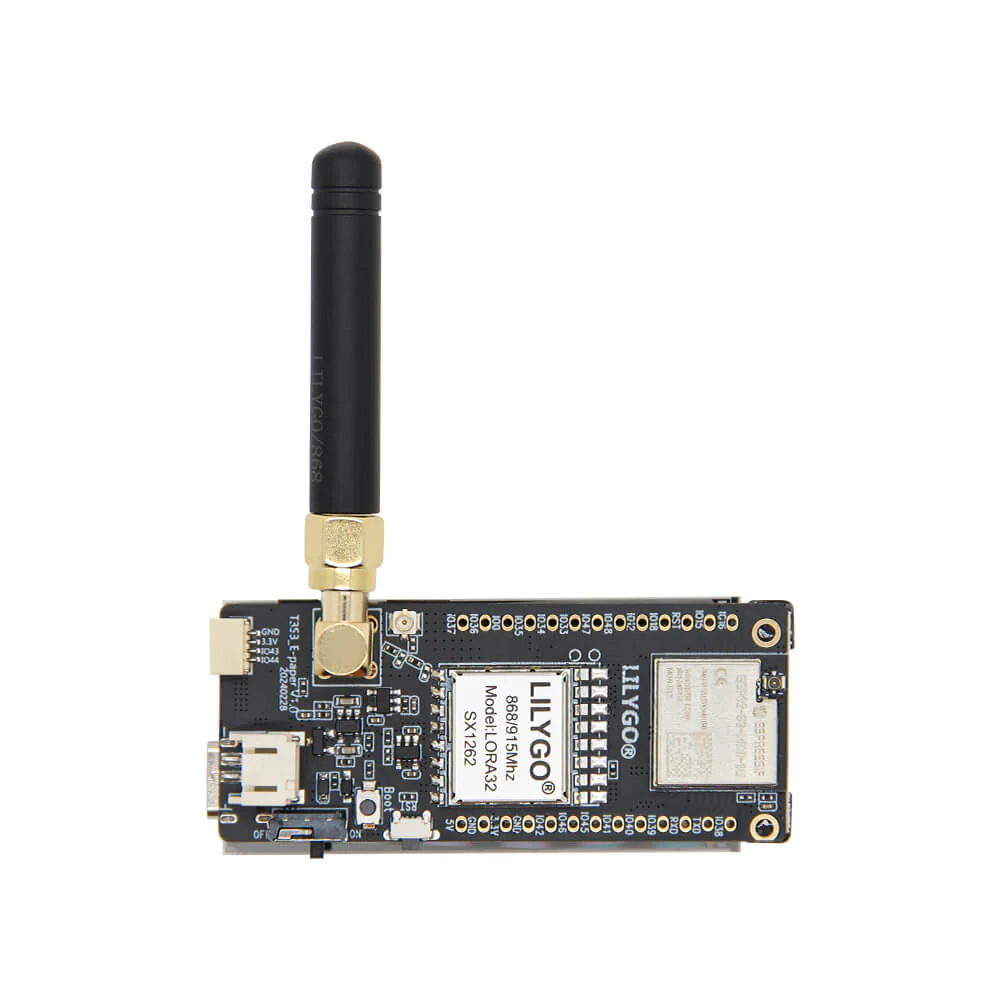

T3 S3 E-paper
Specifications
Support USB/3.7V Lipo battery power supply, Battery switch
| MCU | ESP32S3FH4R2 |
| Flash | 4MB |
| PSRAM | 2MB |
| Wireless protocol | 2.4GHz Wi-Fi + Bluetooth 5.0 |
| Onboard functions | Reset + Boot Button, Support TF Card |

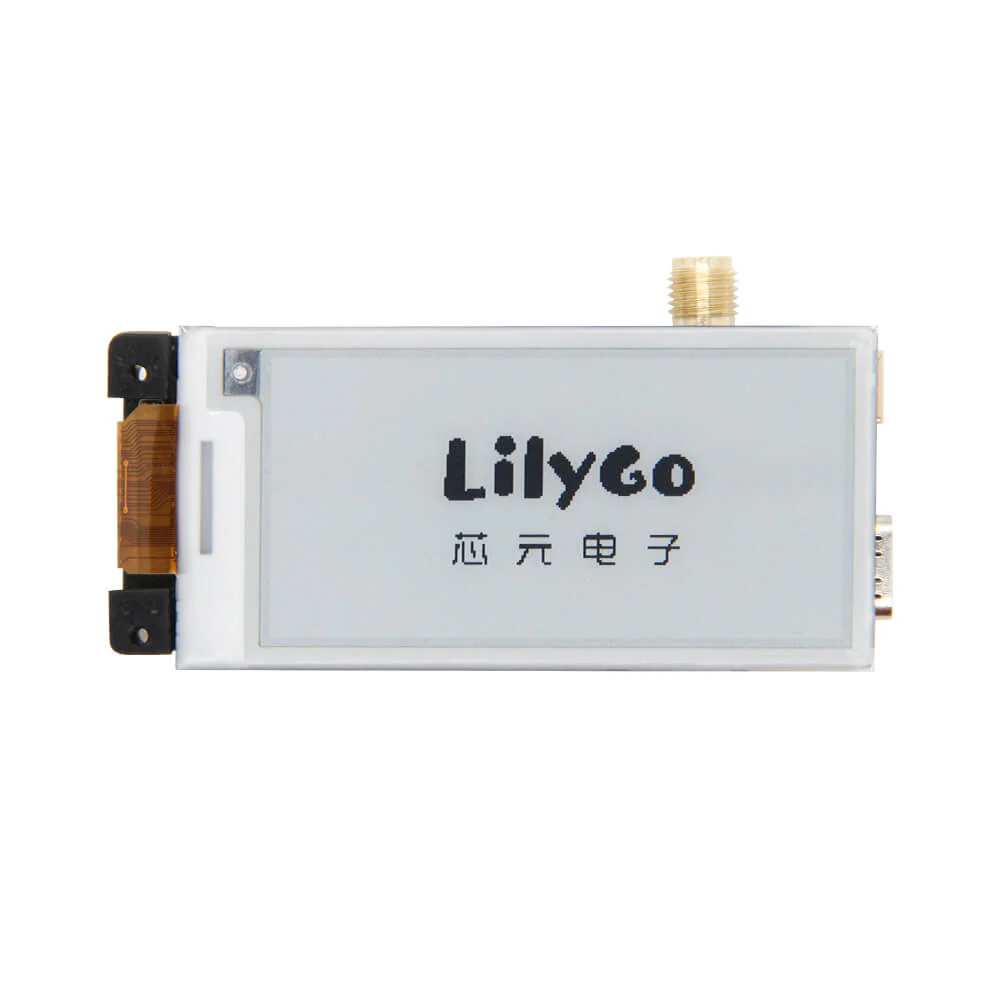

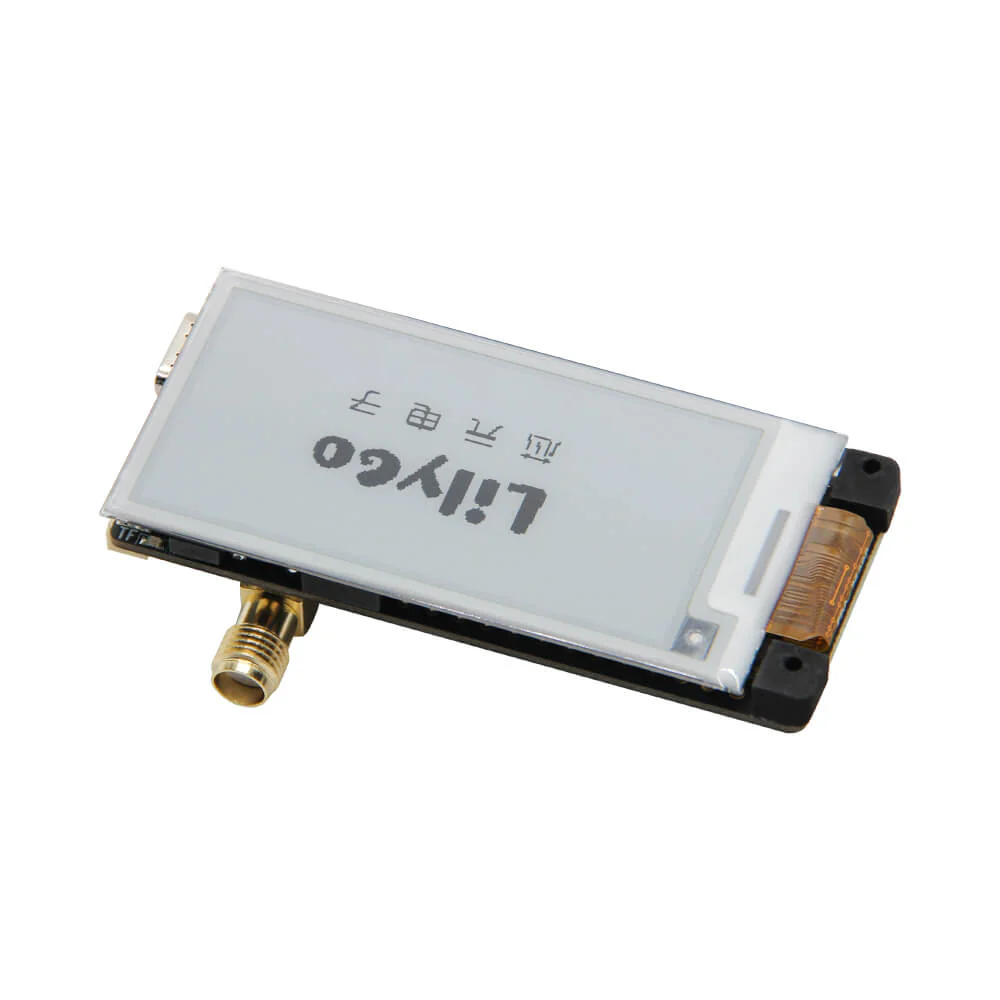

2.13 inch E-Paper DEPG0213BN
| Resolution | 250 x 122 |
| Display size | 48.55 x 23.70mm |
Sample Code For Reference [Github]
If you need technical support please check the below link to find more details
T3 S3 Epaper
Size
Pin Diagram
More
Specifications
Support USB/3.7V Lipo battery power supply, Battery switch
| MCU | ESP32S3FH4R2 |
| Flash | 4MB |
| PSRAM | 2MB |
| Wireless protocol | 2.4GHz Wi-Fi + Bluetooth 5.0 |
| Onboard functions | Reset + Boot Button, Support TF Card |
2.13 inch E-Paper DEPG0213BN
| Resolution | 250 x 122 |
| Display size | 48.55 x 23.70mm |
Sample Code For Reference [Github]
If you need technical support please check the below link to find more details
T3 S3 Epaper
Size
Pin Diagram
More
Select Version
From $8.26
Original: $23.61
-65%T3 S3 E-paper—
$23.61
$8.26Description
