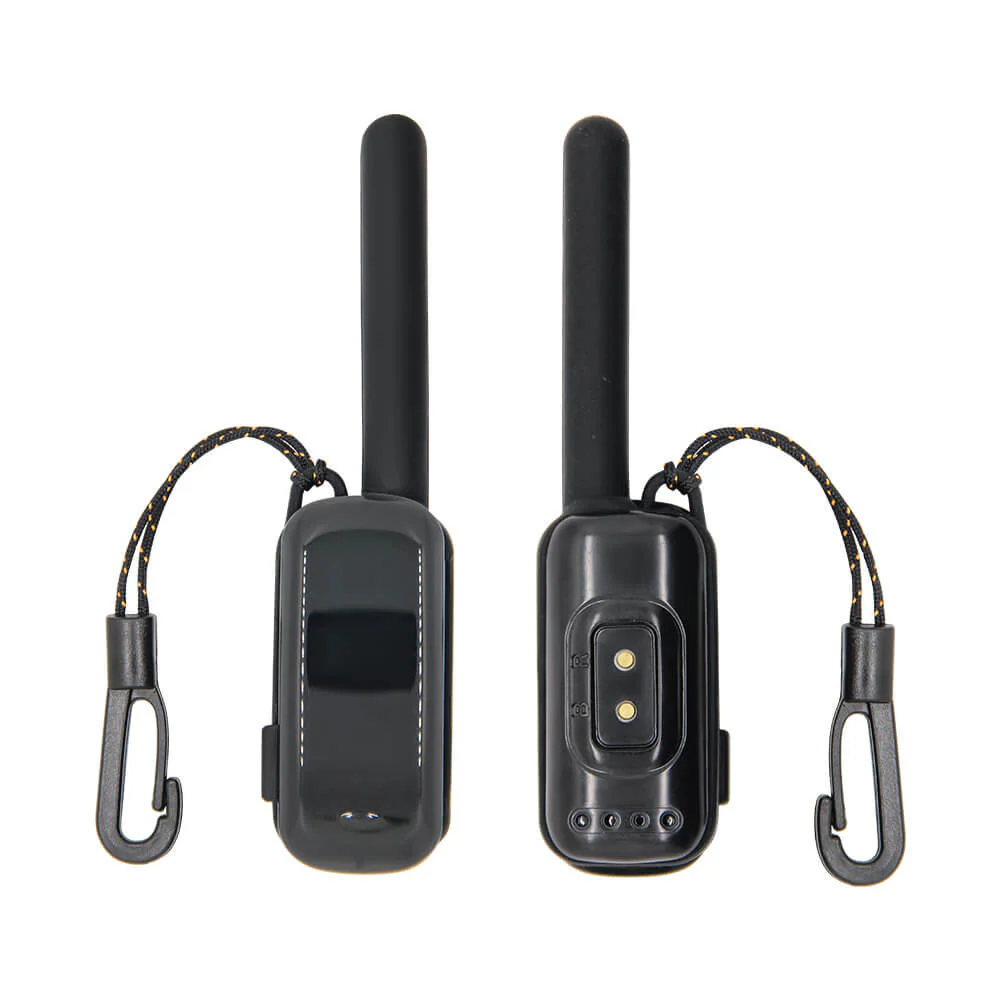

Product image 1
1 / 6
+1

T-Impulse Plus

Specifications

MCU NRF52840
FLASH 1MB
RAM 256kB
Bus Interfaces UART, SPI, TWI, PDM, I2S, QSPI
Wireless Connectivity Bluetooth 5, Thread, Zigbee
Onboard Function PMU, IMU, Vibration motor, LDO
Flash Chip 32Mbit FLASH Chip
Touch Button TTP223
LoRa Transceiver SX1262, Long Range, Low Power
Support Bands 400~520MHz, 830~945MHz
Display
  • 0.49 inch OLED SSD1315
  • Resolution: 64 x 32
  • Interface: I2C
GNSS Module MIA-M10Q, Support: GPS, GLONASS, BeiDou, QZSS
Battery Power Management
  • Chip: SGM41562
  • USB Charge: 5V 500mA

Tech Support

ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

Shipping List
