T-Display C5

Specifications

MCU ESP32-C5, 2.4 and 5 GHz dual-band Wi-Fi 6
Wireless Connectivity Wi-Fi 802.11 ax/b/g/n, BLE 5
Platform Arduino-ide, ESP-IDF
Onboard Functions 16MB Flash + 8MB PSRAM
Display
  • 1.9 inch ST7789 IPS LCD
  • Resolution: 170 x 320, RGB565;
  • 4-Wire SPI, 3.3V
Battery Management Low Power BMU: AXP2602
LP Core Supports ULP LP core (RISC-V) for independent sensor operation during deep sleep

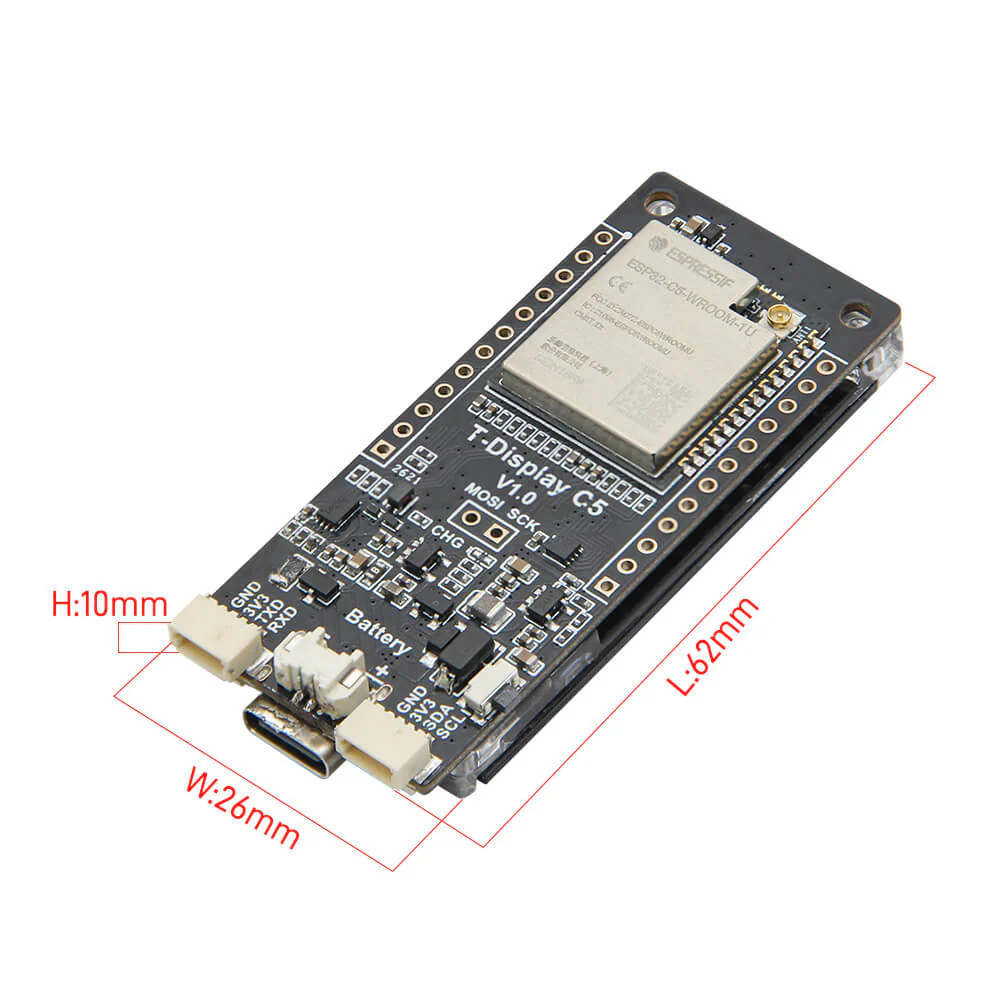

Dimensions 62 x 26 x 10mm
USB Supply 5V 500mA

Tech Support

ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

🔎Wiki document
To obtain more detailed documentation.

💡LILYGO-Spark
Discover more creative IoT projects with our Spark series.
